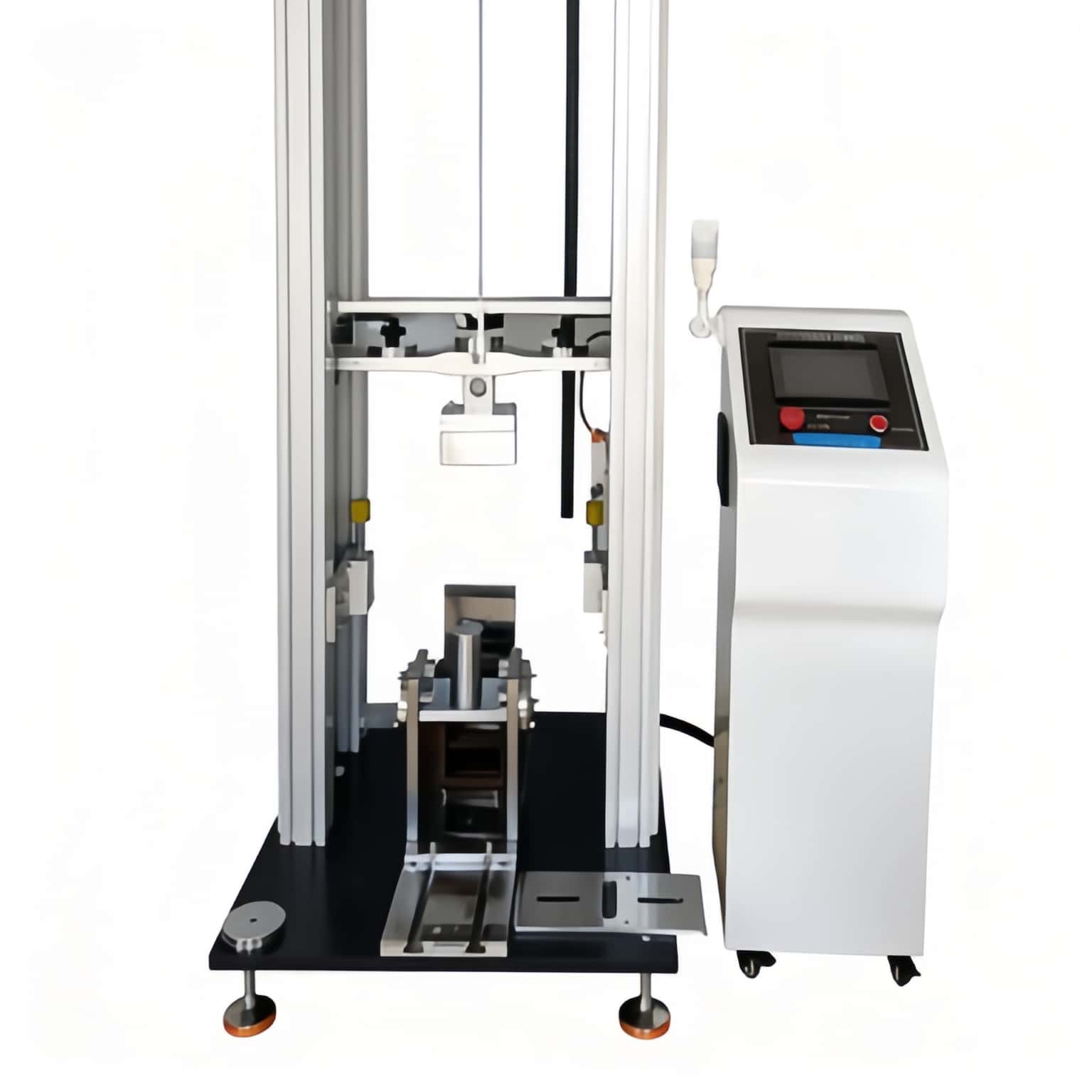

PLC-Controlled Roller Skate Vertical Drop Impact Testing Equipment/Roller Skate Impact Strength Durability Testing Machine

Name: PLCControlled Roller Skate Vertical Drop Impact Testing EquipmentRoller Skate Impact Strength Durability Testing Machine
Brand: HUAKAI
Price: 4 USD

Quality PLC-Controlled Roller Skate Vertical Drop Impact Testing Equipment/Roller Skate Impact Strength Durability Testing Machine for sale

Frequency : 50HZ

Place of Origin : Guangdong, China

Accuracy : Speed display during the test: 0~4.5m/s

Protection Class : IP65

power : 750W

warranty : 1 Year

Price : $4,000-6,000 / piece

customized support : OEM, OBM

Voltage : 220 V

Accuracy Class : High Accuracy

Brand Name : HUAKAI

Drop Hammer Height Display : PLC Human-Machine Interface (HMI) Display

Machine Dimensions : (700 x 600 x 3380) mm

MOQ : 1 piece

Type : Testing Machine

Weight : Approximately 200 kg

Contact Now

Product Overview

PLC-Controlled Roller Skate Vertical Drop Impact Testing Equipment/Roller Skate Impact Strength Durability Testing Machine

The Skate Vertical Impact Testing Machine is designed to test the impact resistance strength of roller skates and ice skates. The machine uses an electromagnet to control the drop hammer, which freely rises and falls to impact various parts of the skates at a specific speed. It features an electric lifting mechanism with a PLC touchscreen to set and display the actual lifting height, ensuring precise and repeatable tests.
Functions & Application Areas
* Functions: Simulates vertical impact on skates to evaluate their resistance to sudden shocks and structural integrity.
* Applications: Ideal for skate manufacturers, sports equipment quality control laboratories, and research institutions to ensure product durability and compliance with international standards.

Product Paramenters

Parameter	Specification
Drop Height	Adjustable according to test standards
Impact Hammer Specifications	A. 6.25kg (with crossbar), rectangular, 30cm × 5cm, EVA75A rubber block 30cm × 5cm × 2.5cm B. 8.0kg (with crossbar), rectangular, 30cm × 5cm, EVA75A rubber block 30cm × 5cm × 2.5cm C. 13.5kg (with crossbar), cylindrical, diameter 65cm D. 15kg (with crossbar), cylindrical, diameter 75cm E. 17kg (with crossbar), cylindrical, diameter 75cm F. 23kg (with crossbar), cylindrical, diameter 40cm
Height Display	PLC human-machine interface display
Impact Height Setting	PLC touchscreen display and control
Speed Display During Test	0 ~ 4.5 m/s
Clamps	One movable clamp for roller skates, one universal movable clamp for ice skates (interchangeable)
Anti-Secondary Impact Function	Yes
Motor Power	750W
Machine Dimensions (L×W×H)	700 × 600 × 3380 mm
Machine Weight	Approximately 200kg
Power Supply	AC 220V, 50Hz

Products Description

Structure & System Configuration
The testing machine consists of:
- An electromagnet-controlled hammer for precise impact release.
- PLC touchscreen interface for accurate height control and real-time display.
- Interchangeable clamps for testing both roller skates and ice skates.
- Electric lifting mechanism for smooth and reliable hammer movement.
- Anti-secondary impact function to protect samples during testing.
Applicable International / National Standards
* EN 13843:2003
* GB 20096-2006

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
