Electric Scooter Horizontal Impact Testing Machine Scooter Impact Tester Equipment

Name: Electric Scooter Horizontal Impact Testing Machine Scooter Impact Tester Equipment
Brand: HUAKAI
Price: 7 USD

Quality Electric Scooter Horizontal Impact Testing Machine Scooter Impact Tester Equipment for sale

customized support : OEM, OBM

Weight : 500kg

power : 1.5kw

MOQ : 1 piece

Protection Class : IP65

Place of Origin : Guangdong, China

Frequency : 50Hz

Type : Testing Machine

Application : Impact Testing

Test Track Length : 4.8 m

Price : $7,000-9,500 / piece

Brand Name : HUAKAI

Voltage : 220 V

Accuracy Class : High Accuracy

Accuracy : Testing speed: 1-5m/s

warranty : 1 Year

Contact Now

Product Overview

Electric Scooter Horizontal Impact Testing Machine Scooter Impact Tester Equipment

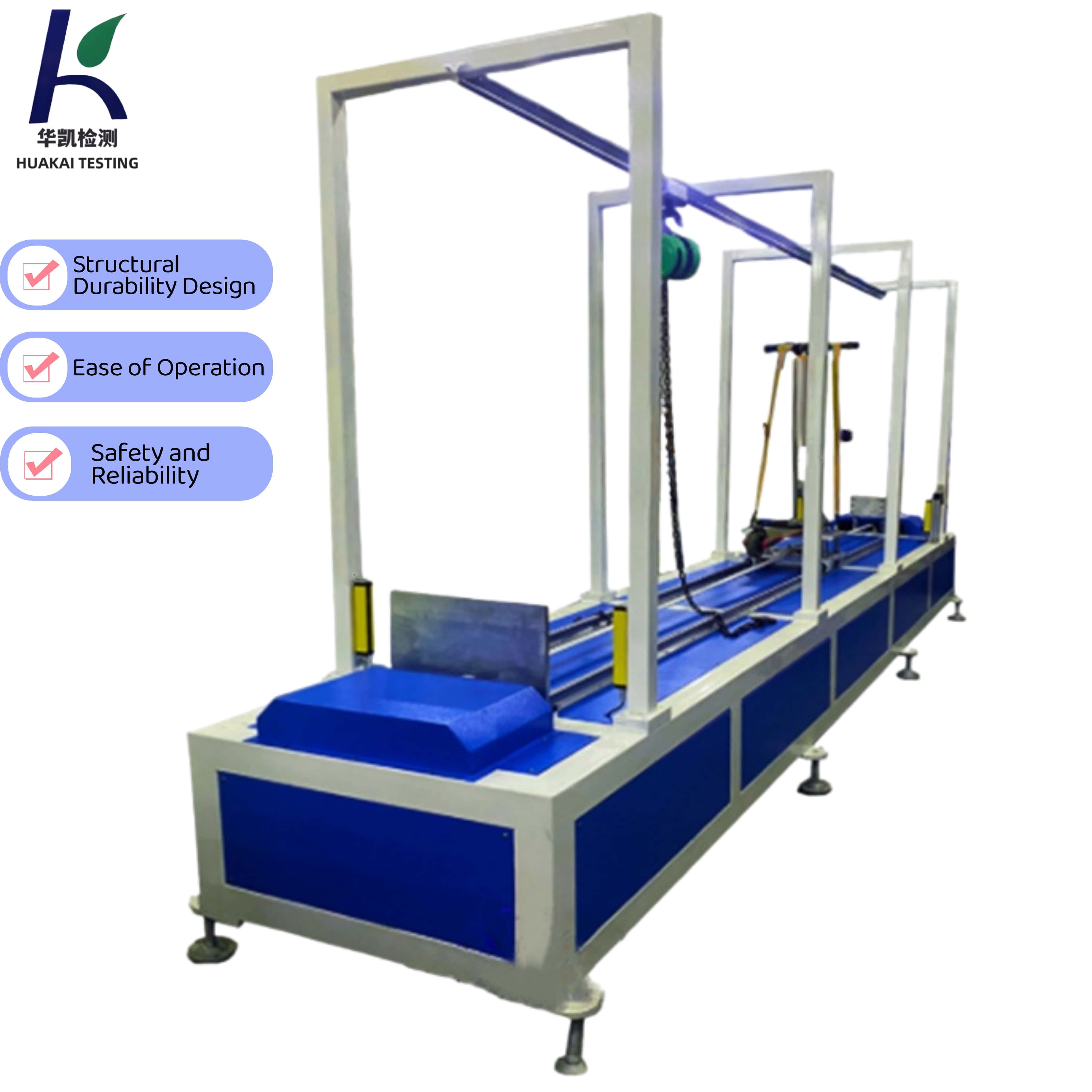

The Scooter Horizontal Impact Testing Machine is designed to simulate obstacle collision strength tests for scooters and roller skates in compliance with European standards. The machine propels the scooter to a specified speed and collides it against a rigid block with a height of 50mm, simulating real-life impact scenarios. During testing, standard counterweights are securely attached to the scooter, which is then placed on the test platform and connected to safety ropes. The machine operates based on the principle of converting potential energy into kinetic energy, enabling precise evaluation of wheel, frame, and brake performance by detecting deformation, bending, or cracking.
Functions & Application Areas

Functions:

* Simulates scooter collision with obstacles at controlled speeds.
* Evaluates the strength and durability of scooter wheels, frames, and braking systems.
* Detects structural failures such as deformation, bending, and cracking.
* Applications: * Scooter manufacturers for product performance validation and compliance testing.
* Quality inspection laboratories and R&D departments focusing on scooter safety and durability improvement.

Product Paramenters

Parameter	Specification
Testing Speed	1–5 m/s (adjustable)
Motor Power	1.5 kW
Machine Dimensions (L×W×H)	4800 × 650 × 1020 mm (approx.)
Machine Weight	500 kg
Power Supply	AC 220V, 50Hz
Runway Length	4.8 m
Speed Control	Automatic control with touchscreen display, digital setting; maintains scooter speed at 4.5 ±1 m/s
Load Counterweights	Standard configuration, adjustable by adding weights

Products Description

Structure & System Configuration
The testing machine consists of:
- Precision motor-driven propulsion system for controlled speed testing.
- Rigid obstacle block for realistic collision simulations.
- PLC touchscreen interface for intuitive control and parameter settings.
- Heavy-duty frame and track design for stable and repeatable testing.
- Safety rope and clamping mechanisms to ensure secure and safe operation during testing.
Applicable International / National Standards
* ASTM F2264-14
* EN 13843:2003
* EN 13613:2001
* EN 14619:2004

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
