High-Performance Laboratory Tape Adhesion Testing Machine with Temperature and Humidity Chamber

Name: HighPerformance Laboratory Tape Adhesion Testing Machine with Temperature and Humidity Chamber
Brand: HUAKAI
Price: 3 USD

Quality High-Performance Laboratory Tape Adhesion Testing Machine with Temperature and Humidity Chamber for sale

MOQ : 1 piece

Voltage : 220 V

power : 6KW

Frequency : 50±0.5Hz

Control Mode : Touch Control

Accuracy Class : High Accuracy

Brand Name : HUAKAI

customized support : OEM, OBM

Protection Class : IP65

Heater : Electric Heating Tube Heater

Accuracy : Humidity Range: 20% RH ~ 98% RH

Price : $3,800-7,000 / piece

Place of Origin : Guangdong, China

Application : Strength Testing

Type : Testing Machine

warranty : 1 Year

Contact Now

Product Overview

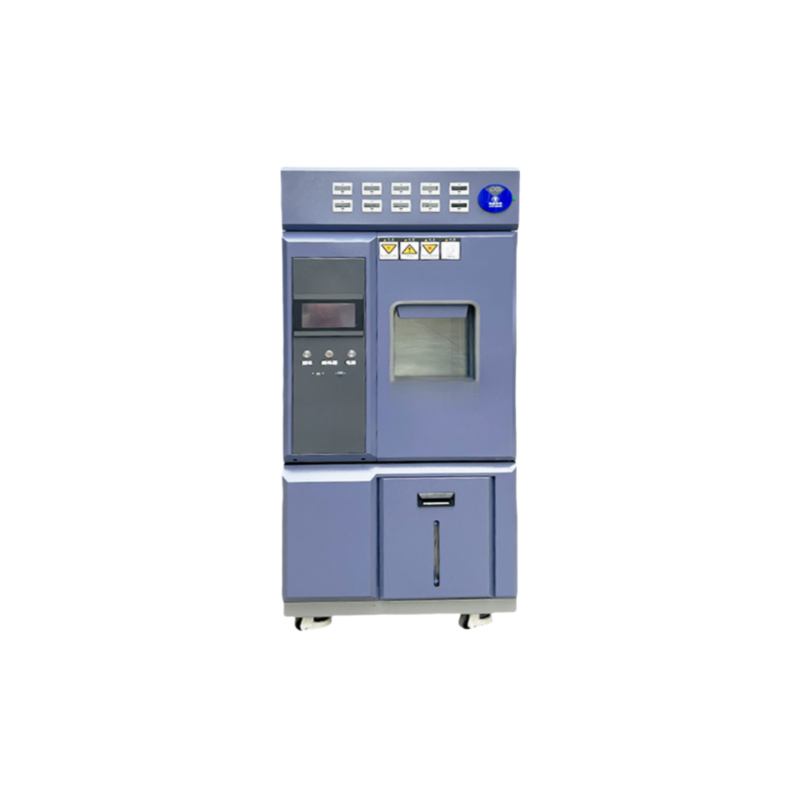

High-Performance Laboratory Tape Adhesion Testing Machine with Temperature and Humidity Chamber

The Constant Temperature and Humidity Holding Power Tester is mainly used to test the adhesive holding performance and anti-sticking ability of pressure-sensitive tapes under different environmental conditions. Samples are attached to the test plates with standard weights applied to the lower ends. After a specific period, the tester measures the tape’s sliding distance or adhesion duration to evaluate the retention performance. The system can simulate various environmental conditions such as high temperature and humidity, low temperature and humidity, or combinations thereof. With precise PID control and touchscreen interface, it provides stable and accurate environmental simulation for adhesive performance testing.
Applicable Standards
Complies with GB/T2423.1-4, GJB150A1/4, IEC68-2-30, GB/T4851, and HG/T2492-2005 standards.

Product Paramenters

Item	Specification
Temperature Range	-40℃ ~ +150℃
Humidity Range	20%RH – 98%RH
Test Fixtures	5 sets
Load Weight	1kg standard (customizable to 5kg)
Test Plate Size	Thickness 1.5–2.0mm, Width 40–50mm, Length 60–125mm (SUS#304 stainless steel)
Temperature Accuracy	±0.5℃
Humidity Accuracy	±2.5%RH
Temperature Uniformity	±0.5℃ ~ ±2.0℃
Humidity Uniformity	±3%RH
Insulation Material	High-density glass wool + polyurethane foam
Heater	Electric heating tube
Refrigeration System	Mechanical compression system
Compressor	Imported Tecumseh (France)
Refrigerant	R23 / R404A (environmental friendly)
Condenser	Wave fin forced air-cooled type
Evaporator	Slope-type fin-tube evaporator
Humidity System	Electronic balance humidification and stainless steel water tank
Dehumidification Method	Dew point cooling contact type
Fan Circulation	Multi-blade centrifugal fan with forced air convection
Control Mode	Touchscreen LCD controller, PID+SSR/SCR control
Program Capacity	120 groups × 1000 segments
Cycle Setting	9999 cycles or continuous mode
Operation Modes	Constant, Programmable, or Linked
Communication Interface	RS-232 standard port
Power Supply	AC 220V, 50Hz, 6KW
Operating Environment	Temperature 5–35℃, Humidity ≤85%RH
Chamber Construction	Inner SUS#304 stainless steel, outer coated steel plate
Safety Functions	15-point system monitoring, overheat protection, power-off memory, restart mode (BREAK/COLD/HOT)

Item	Description
Packing	Strong wooden case with shockproof foam and moisture protection
Delivery Time	7–15 working days after order confirmation
Shipping Method	By air, sea, or express (DHL/FedEx/UPS)
Port	Shenzhen / Guangzhou / Shanghai
Warranty	12 months with lifetime technical support

Products Description

Controller and Operation Features
* Color LCD touchscreen display with multilingual interface (English/Chinese).
* Program editing for temperature and humidity profiles with real-time graphical curves.
* Supports time-based control, external logic control, and scheduled operation.
* Automatic data recording, fault detection, and alarm display.
* Built-in safety systems prevent overheating and ensure stable operation.
Maintenance & Safety
* Keep the chamber clean before and after each test.
* Apply anti-rust oil weekly on metal parts and lubricate screws monthly.
* Use pure or RO water for humidification to avoid scaling.
* Do not use in direct sunlight, high dust, or high vibration environments.
* Ensure proper grounding and avoid solvent cleaning agents.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
