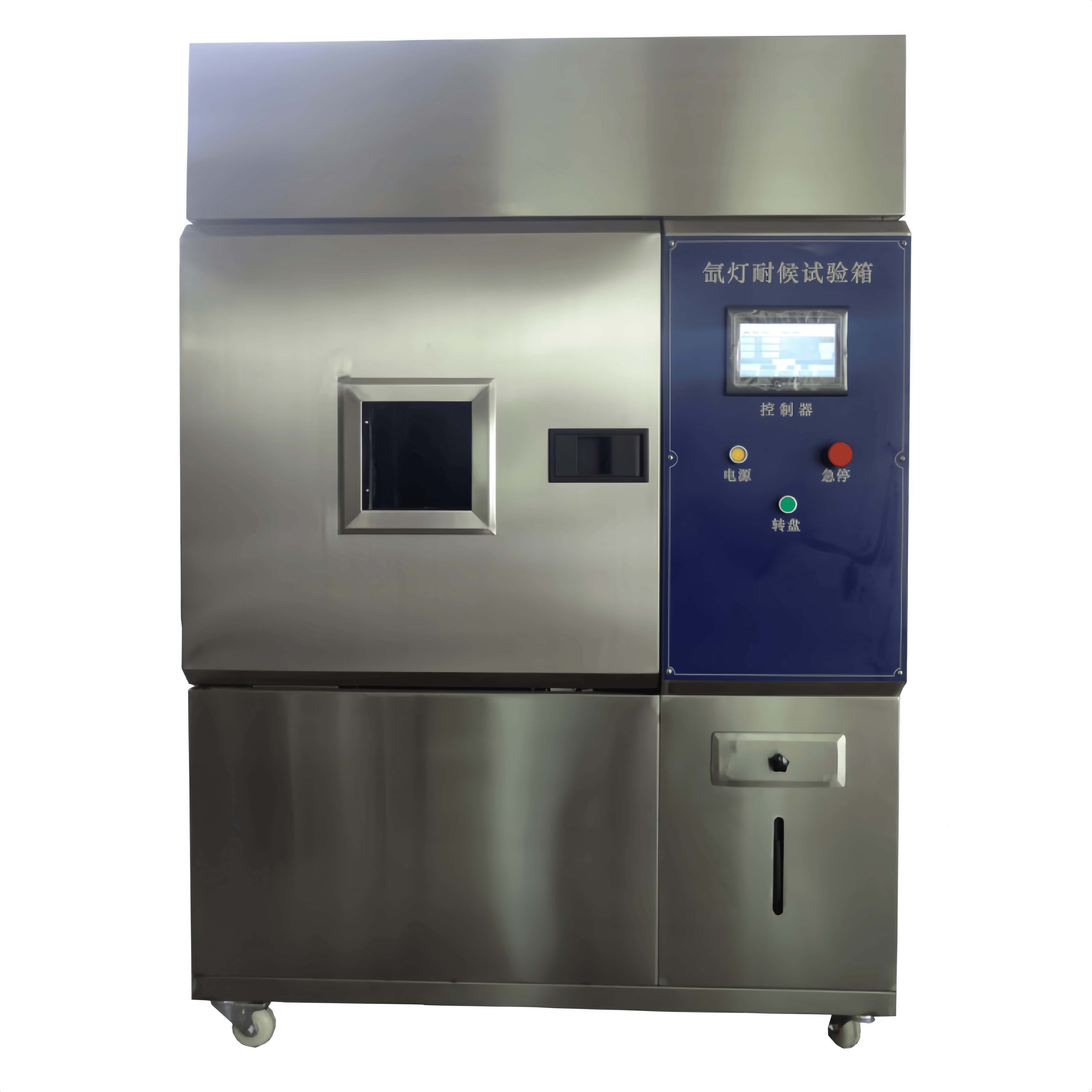

Xenon Arc Lamp Testing Equipment for Evaluating Material Light Resistance Performance with Full Solar Spectrum Simulation

Name: Xenon Arc Lamp Testing Equipment for Evaluating Material Light Resistance Performance with Full Solar Spectrum Simulation
Brand: HUAKAI
Price: 6 USD

Quality Xenon Arc Lamp Testing Equipment for Evaluating Material Light Resistance Performance with Full Solar Spectrum Simulation for sale

customized support : OEM, OBM

Accuracy Class : High Accuracy

Overall Dimensions : 1220*1200*1900mm

Protection Class : IP65

Place of Origin : Guangdong, China

warranty : 1 Year

Working Dimensions : 500*750*600mm

Accuracy : Temperature fluctuation: ±0.5℃

Brand Name : HUAKAI

Price : $6,000-11,000 / piece

Application : Laboratory Testing, Lab Testing

power : 13KW

Type : Testing Machine

Spectral Wavelength : 340nm

Voltage : 380 V

MOQ : 1 piece

Controller : Microcomputer Programmable Integrated Controller

Contact Now

Product Overview

Xenon Arc Lamp Testing Equipment for Evaluating Material Light Resistance Performance with Full Solar Spectrum Simulation

The Xenon Arc Weathering Test Chamber is designed to simulate the full spectrum of sunlight, combined with moisture and temperature control, to evaluate the weather resistance and aging performance of materials. By reproducing the destructive effects of sunlight, rain, and temperature cycles, this equipment enables accelerated testing to predict material durability in outdoor environments.
Key Features
* Full Spectrum Simulation: Xenon arc lamps reproduce ultraviolet, visible, and infrared light similar to natural sunlight.
* Moisture Simulation: Water spray and humidity control to simulate rain, dew, and condensation.
* Precise Control: Accurate temperature, humidity, and light intensity regulation for repeatable testing.
* Safety Protection: Over-temperature protection, water shortage alarm, leakage breaker, and door interlock.
* Versatile Applications: Suitable for plastics, coatings, rubber, textiles, automotive parts, and more.

Product Paramenters

Item	HK-861
Inner Chamber Size (W×H×D, mm)	950×950×850
Overall Dimensions (W×H×D, mm)	1500×1900×1400
Temperature Range	RT +10°C ~ 70°C
Temperature Fluctuation	±0.5°C
Black Panel Temperature	40°C ~ 110°C ±3°C
Humidity Range	30%RH ~ 95%RH
Light Source	Air-cooled xenon arc lamp
Wavelength Range	290 nm ~ 800 nm
Light Intensity	Adjustable 250~1120 W/m² (at 340 nm)
Specimen Rotation	1~5 rpm, adjustable
Specimen Size	75×150 mm or customized
Time Control	0~9999 hours, adjustable
Power Supply	AC 380V, 50Hz, 3-phase

Products Description

Applications
Automotive interior & exterior components, outdoor coatings, plastics, rubber, inks, adhesives, building materials, textiles, and other products requiring sunlight, UV, and weather resistance testing.
Structure & System Description
* Chamber Construction: SUS#304 stainless steel inner chamber; exterior powder-coated steel with anti-corrosion finish.
* Insulation: High-density rigid polyurethane foam for thermal efficiency.
* Light Source: High-stability air-cooled xenon arc lamp with optical filters.
* Cooling System: Forced air cooling to maintain stable lamp temperature.
* Water Spray System: Automatic control with water filtration to simulate rain.
* Control System: Microcomputer PID controller with programmable light, temperature, and humidity cycles.
Operating Conditions
* Ambient Temperature: 5°C ~ 35°C
* Ambient Humidity: ≤85% RH
* Power Supply: Stable AC 380V, 50Hz, 3-phase
* Water Supply: Clean water, conductivity ≤20 μS/cm
Compliance & Standards
Meets or references: ISO 4892, ASTM G155, ASTM D2565, GB/T 16422, SAE J1960, and other xenon arc weathering test methods.

Details Images

Certifications

Company Profile

Product packaging

Packaging & Shipping

• Internal Protection: Anti-collision foam padding and moisture-proof wrapping are applied to prevent mechanical damage and corrosion during transit. • Marking & Labeling: Each package is clearly labeled with model number, dimensions, weight, and handling instructions for easy identification. • Loading: All packages are reinforced and suitable for forklift handling and container loading.

• Shipping Options: By sea, air, or express courier according to customer preference.
